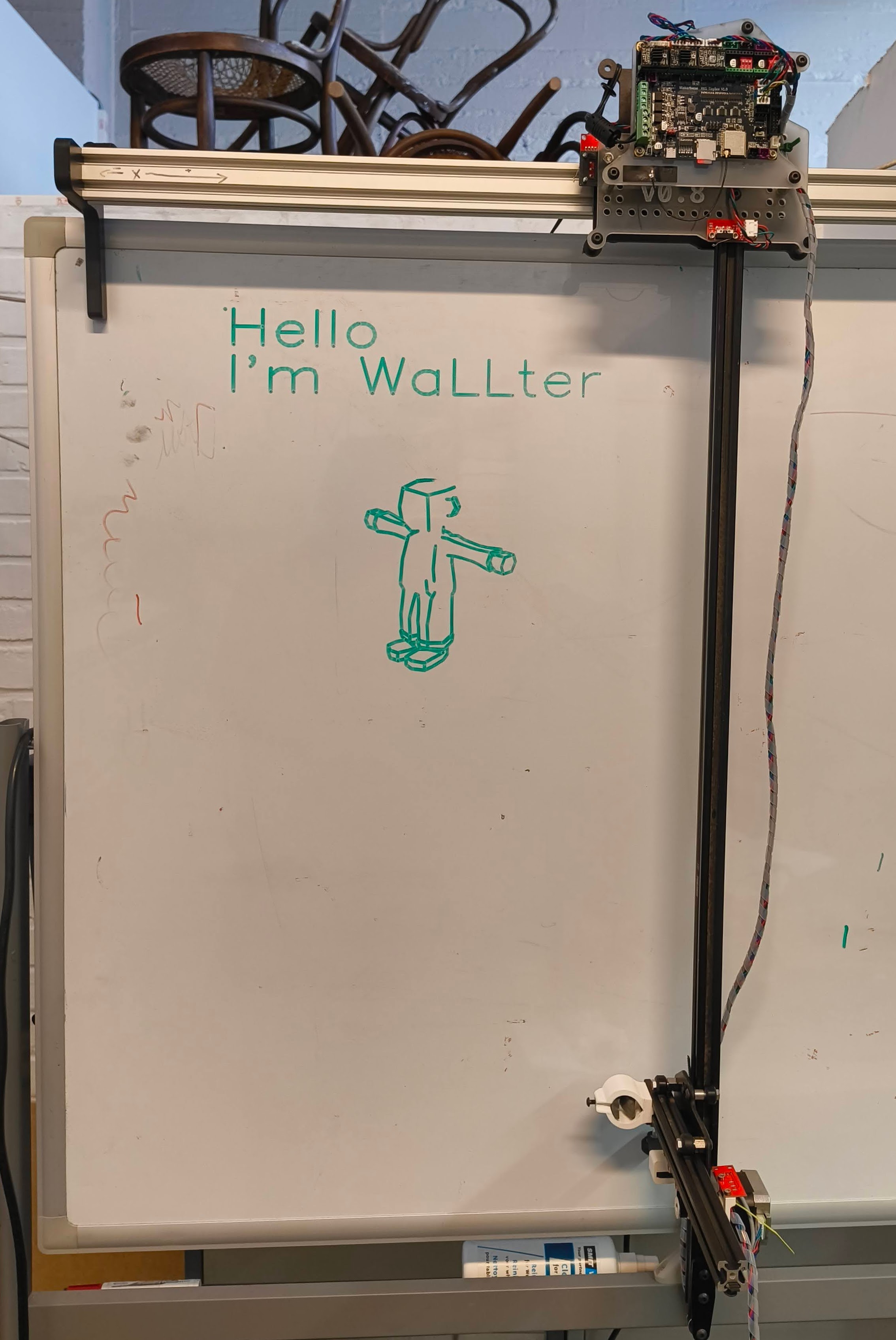

waLLTer le plotter
wkrshop day 1
- install fluid NC = usage MS tinybee
- $Wifi/Mode=AP (acces point only)
- value modifié via fluidTerm
- acces point via : http://192.168.0.1/
- SSID : FLuidNC // mdp : 12345678
- flash config.YAML :
- test homing with reprap v1.0 endswitch
- wiring stepper motor : bon sens + homing direction
- save avacnée du jour sur config.yaml
wrkshop day 2-3
- modif config.yaml
- modif sens software motor (motor dir : low)
- retablissement Sta/AP
Hardware
- config.yaml config pour Fluid NC
Bill Of Materials
ATTENTION BOM pas en accord avec les plans (passage V-whell -> Mini V-wheel a modifier dans les plans)
- 13: Wheel Mini
- 8: Aluminium Spacer - 6mm
- 5: Eccentric nuts - 6mm
- 13: Micro Precision Shim - 6.5 x 5 x 1mm
- 4: T-Nuts - Square Standard M5 for 2020
- 6: T-Nuts Dropping M5
- 20: Low Profile Screws - 25mm
- 10: Low Profile Screws - 8mm
- 6: Aluminium Spacer - 20mm
- 3: Timing Pulley - 2GT (2mm) - 20 Tooth - For 9mm Belt - 5mm Bore
- 1: Idler Pulley GT2 20Tooth
- 20: Button Head Screws M3 12mm
- 1: Solid V Wheel Kit
- 3: Nema 17 Stepper Motor 40mm
- 3: Câbles JSTXH2.54 vers JSTPH6P
- V Slut 2040 1m
- V Slut 2020 1m
- 1 Alimentation 12V 2 ampères Minimum
- 3: Endswitch Type REPRAP (8€ les 6)
- 1: Fluid NC MKs Tinybee (32€)
- 5: Pilote Motor DRV8825 (10€)
- Timing Belt GT2 3.50m 10€
- Total ≃ 190€ hors custom pièces (CNC/3D)
Software
Plotter app
- install requirements.txt
- Run Flask: app.py
